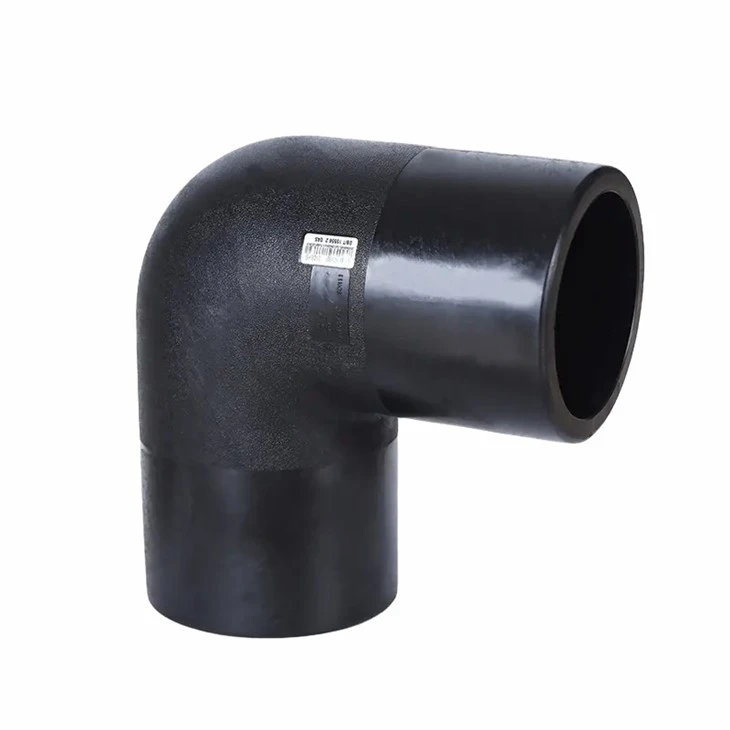

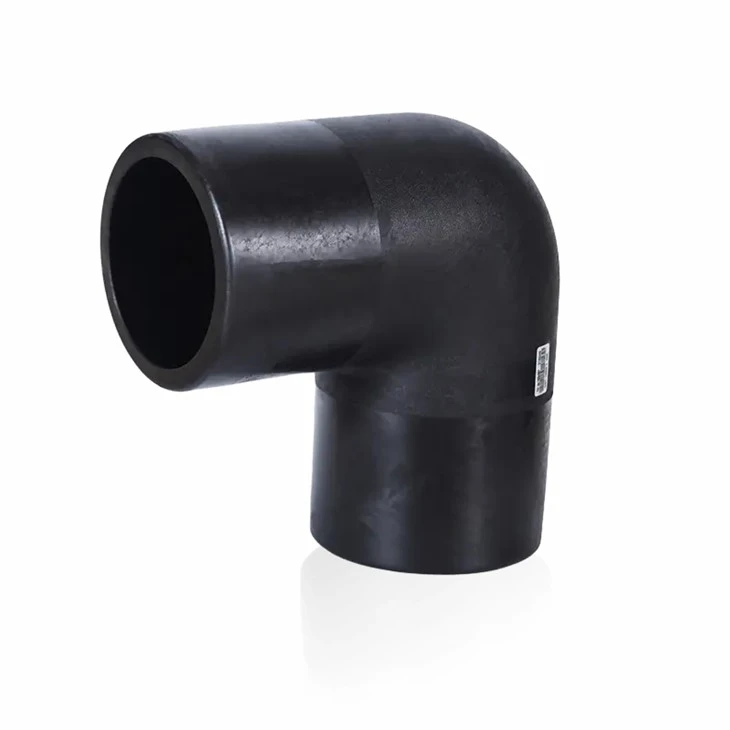

Butt Fusion 90 Elbow

Our Butt Fusion 90 Elbow is a standard part for right-angle turns in PE pipes. We use many large automatic molding machines. They run 24 hours a day in shifts. Our total monthly output for all fittings reaches 200,000 pieces. This high capacity lets us take very large project orders. It also lets us fill small urgent orders fast. Our product works for both big and small buyers. We deliver on time for any order size. You get reliable service no matter how many pieces you need.

Send Inquiry

Description

High Output for Big and Small Orders

Full Custom and OEM Service

We offer full OEM and ODM services. We can put your brand name on the product body. We can also make special angle elbows from your drawings or samples. We did a custom elbow project for a Middle East client. The angle was not standard. From drawing to mold to sample, it took 2 to 3 months. The sample passed all tests the first time. This shows our skill in custom work for Butt Fusion 90 Elbow. Our standard warranty covers all sizes from DN20 to DN500. If our process causes a welding problem, we give you a new part for free.

Key Size Data for Your Work

The table below shows L (total length) and L1 (installation section length). For the DN315 size, L=160mm and L1=345mm. Always check these sizes before you start work. Our sales team helps you pick the right Butt Fusion 90 Elbow. We give you size help and process answers all day. This way you match the product to your job exactly. We make sure you get the correct elbow for your pipeline turn.

Size dn	Order No.	dn	L (mm)	L1 (mm)
20	ML90°020	20	45	65
25	ML90°025	25	45	68
32	ML90°032	32	45	63
40	ML90°040	40	49	74
50	ML90°050	50	63	90
63	ML90°063	63	64	98
90	ML90°090	90	83	125
110	ML90°110	110	90	155
125	ML90°125	125	87	159
140	ML90°140	140	92	190
160	ML90°160	160	107	212
180	ML90°180	180	105	223
200	ML90°200	200	120	239
250	ML90°250	250	129	267
315	ML90°315	315	160	345
355	ML90°355	355	164	360
400	ML90°400	400	179	374
450	ML90°450	450	195	365
500	ML90°500	500	212	440
