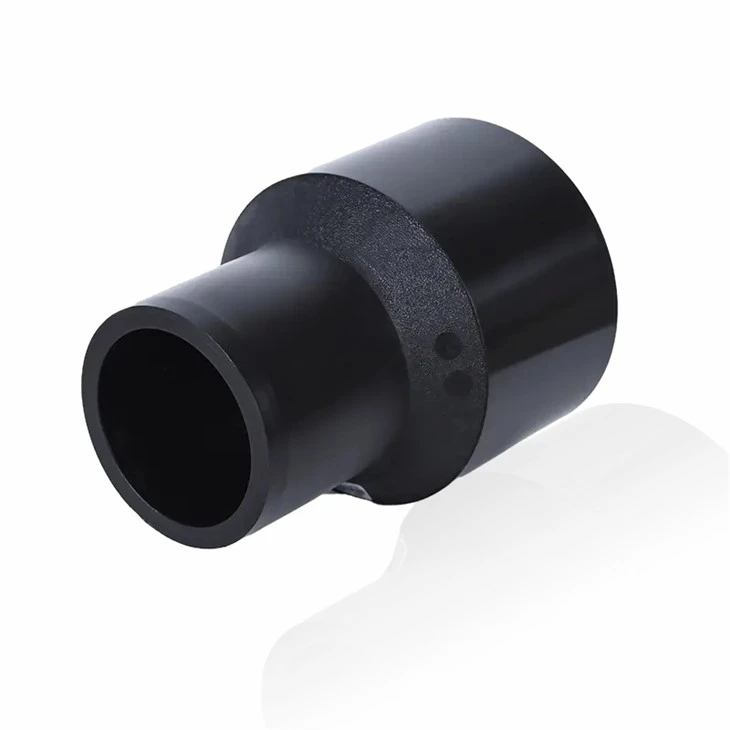

HDPE Injection Molded Reducer

Our HDPE Injection Molded Reducer is a key part for PE pipe butt welding. It helps connect two pipes of different sizes. Our factory covers 200 acres. We have all the machines we need for production. This includes molding machines, a tooling workshop, and a test lab. We make the molds, change the raw materials, do the injection molding, and check the sizes. All steps are inside our factory. This way, every product has the same size. We avoid the size problems that come with outside production. You can trust our for your pipe projects.

Send Inquiry

Description

Full In-House Production Control

Open Third-Party Inspection

We let any third-party inspection company come to our factory. You can pick a certified agency from anywhere in the world. They can check our finished products. If the test finds a problem caused by us, we pay for all fixes and new products. Our HDPE Injection Molded Reducer follows strict quality rules. The payment terms are simple. For regular stock products, you pay 30% first. Then you pay the rest before we ship. For custom non-stock products, you pay 50% first. For cross-border trade, we use US dollars. All agents get the same payment terms.

Key Sizes for Your Planning

We mark our product sizes as DN1×DN2. For example, 200×110 means the big end is DN200 and the small end is DN110. In the table below, L, L1, and L2 are very important. You need them for welding plans and pipe drawings. We make many HDPE Injection Molded Reducer parts every month. We can produce tens of thousands each month. We keep common sizes in stock all the time. For old customers, we cut the production wait time by 10% compared to new orders. All our reducers come with a standard warranty. This protects your buying rights and helps your project run well.

Size dn1×dn2	Order No.	dn1×dn2	L (mm)	L1 (mm)	L2 (mm)
50×25	MY50/25	50×25	140	67	58
50×32	MY50/32	50×32	137	67	60
50×40	MY50/40	50×40	130	68	57
63×32	MY63/32	63×32	146	69	52
63×40	MY63/40	63×40	148	70	58
63×50	MY63/50	63×50	140	68	62
75×63	MY75/63	75×63	163	80	75
90×40	MY90/40	90×40	153	79	55
90×50	MY90/50	90×50	172	85	65
90×63	MY90/63	90×63	172	85	70
90×75	MY90/75	90×75	173	85	80
110×40	MY110/40	110×40	178	87	54
110×50	MY110/50	110×50	180	85	63
110×63	MY110/63	110×63	176	85	65
110×90	MY110/90	110×90	174	87	79
125×110	MY125/110	125×110	204	108	85
140×l10	MY140/l10	140×l10	230	98	87
160×63	MY160/63	160×63	216	100	65
160×90	MY160/90	160×90	215	100	79
160×110	MY160/110	160×110	215	100	85
160×125	MY160/125	160×125	206	98	92
180×160	MY180/160	180×160	230	105	105
200×63	MY200/63	200×63	262	122	97
200×90	MY200/90	200×90	262	120	105
200×110	MY200/110	200×110	263	123	92
200×160	MY200/160	200×160	258	125	110
200×180	MY200/180	200×180	265	110	118
250×110	MY250/110	250×110	280	143	98
250×160	MY250/160	250×160	290	145	98
250×200	MY250/200	250×200	288	150	114
280×250	MY280/250	280×250	295	145	136
315×200	MY315/200	315×200	310	150	118
315×250	MY315/250	315×250	306	150	125
355×315	MY355/315	355×315	365	172	162
400×200	MY400/200	400×200	360	183	125
400×250	MY400/250	400×250	380	183	180
400×315	MY400/315	400×315	390	182	165
400×355	MY400/355	400×355	380	179	164
450×400	MY450/400	450×400	365	160	170
500×200	MY500/200	500×200	340	160	160
500×355	MY500/355	500×355	420	40	130
500×400	MY500/400	500×400	220	40	140
500×450	MY500/450	500×450	340	160	160
560×500	MY560/500	560×500	200	140	40
630×500	MY630/500	630×500	500	200	40
630×560	MY630/560	630×560	280	200	40
710×630	MY710/630	710×630	210	40	120
800×630	MY800/630	800×630	470	60	120
800×710	MY800/710	800×710	260	60	140
900×800	MY900/800	900×800	445	205	200
1000×900	MY1000/900	1000×900	450	205	200
1200×10003	MY1200/1000	1200×1000	430	180	175
