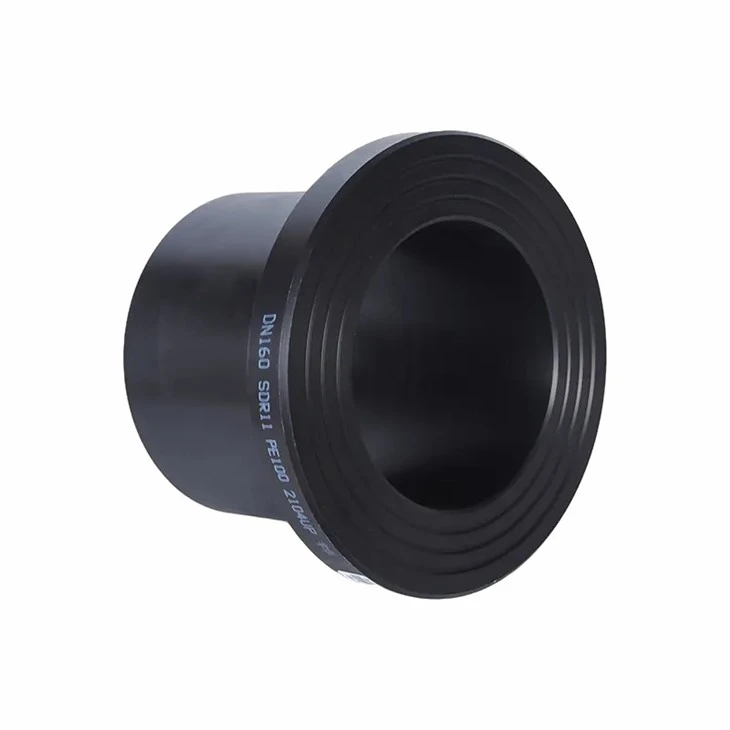

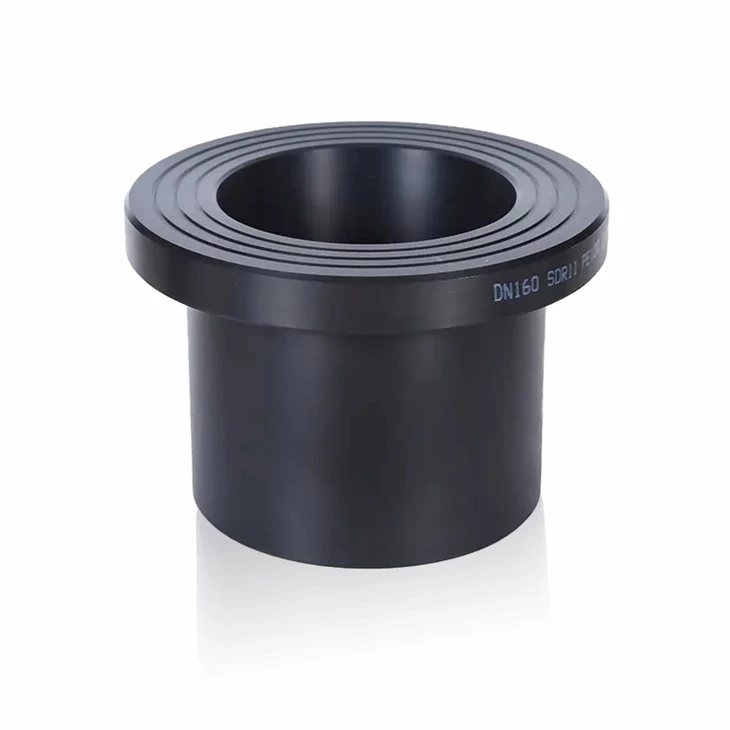

HDPE Injection Molded Flange Adaptor
Our HDPE Injection Molded Flange Adaptor connects PE pipes to metal valves, steel pipes, and industrial equipment. We follow ISO international standards for all sizes. So it fits standard steel flanges sold in the market. We have over 30 years of experience in plastic fittings. We control the flange face flatness and bolt hole positions very carefully. Our product meets the needs of many projects at home and abroad. You get a precise fit every time.
Description
Precise Fit with Steel Flanges
Our HDPE Injection Molded Flange Adaptor connects PE pipes to metal valves, steel pipes, and industrial equipment. We follow ISO international standards for all sizes. So it fits standard steel flanges sold in the market. We have over 30 years of experience in plastic fittings. We control the flange face flatness and bolt hole positions very carefully. Our product meets the needs of many projects at home and abroad. You get a precise fit every time.
Free Sample for Seal Testing
We want you to test the seal before you buy in bulk. So we give free samples. You ask for a sample of our HDPE Injection Molded Flange Adaptor. Then you buy a steel flange locally and do an assembly seal test. If the bolt holes do not line up, you can return the part for a full refund. Our injection molding process gives us high confidence in the fit. We make sure you get a product that works with your steel parts. This free sample service is always open to you.
Clear After-Sales and Full Size Table
If you find a quality problem after delivery, just send us photos. Our service team checks the issue right away. If the damage or size problem comes from us, we send you a new part for free. For cross-border orders, we use FOB terms and US dollars. Normal size orders take up to 30 days to make. Special custom orders take up to 40 days. Our HDPE Injection Molded Flange Adaptor covers DN40 to DN1200. The order code is MP plus the size. In the table, L is total length, L1 is flange thickness, and D is flange outer diameter. These are key for flange assembly.
|
Size dn |
Order No. |
dn |
L (mm) |
L1 (mm) |
D (mm) |
|
40 |
MP040 |
40 |
82 |
11 |
81 |
|
50 |
MP050 |
50 |
84 |
13 |
88 |
|
63 |
MP063 |
63 |
96 |
15 |
104 |
|
75 |
MP075 |
75 |
99 |
16 |
120 |
|
90 |
MP090 |
90 |
110 |
17 |
138 |
|
110 |
MP110 |
110 |
111 |
20 |
158 |
|
125 |
MP125 |
125 |
156 |
26 |
211 |
|
160 |
MP160 |
160 |
147 |
26 |
212 |
|
180 |
MP180 |
180 |
153 |
27 |
212 |
|
200 |
MP200 |
200 |
172 |
27 |
212 |
|
225 |
MP225 |
225 |
195 |
35 |
268 |
|
250 |
MP250 |
250 |
192 |
32 |
320 |
|
280 |
MP280 |
280 |
218 |
33 |
320 |
|
315 |
MP315 |
315 |
174 |
39 |
371 |
|
355 |
MP355 |
355 |
190 |
44 |
430 |
|
400 |
MP400 |
400 |
192 |
43 |
484 |
|
450 |
MP450 |
450 |
225 |
45 |
530 |
|
500 |
MP500 |
500 |
235 |
45 |
585 |
|
560 |
MP560 |
560 |
295 |
62 |
685 |
|
630 |
MP630 |
630 |
240 |
70 |
683 |
|
710 |
MP710 |
710 |
280 |
60 |
587 |
|
800 |
MP800 |
800 |
340 |
92 |
900 |
|
900 |
MP900 |
900 |
277 |
67 |
1005 |
|
1000 |
MP1000 |
1000 |
310 |
110 |
1105 |
|
1200 |
MP1200 |
1200 |
358 |
116 |
1327 |
